Logic Gate NOT

Basic NOT gate NOT gate is inverting circuit / inverter. Equivalent circuit is an electrical circuit such as Figure 3.8 below. When the switch A is connected (on), then the light will die. Conversely when the switch A is disconnected (off), then the light will turn on. So it can be concluded that there will be output Q = “1” only when input A = “0”.

Electrical circuits :

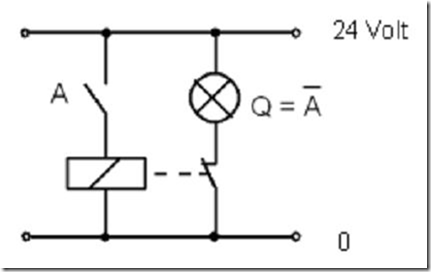

Figure 2.41 equivalent electrical circuit NOT gate

2:42 image image symbol NOT gate

NOT gate function of the equation is:
f (A) = A

Table 3. Table correctness NOT

2:43 image input-output diagram NOT gate

Diagram of input-output of the NOT gate as shown in figure 11 above. Output will always have the opposite logic state of the input.
