Construction
The inside: oil-resistant black rubber sintetls.
Upholstery: double spiral steel wire that has high tensile strength and a woven fiber.
Cover: Black synthetic rubber resistant to scratches and oil.
Usage Note
Channels of hydraulic oil pressure is very high, or saluransaluran fuel oil.
Temperature limits: -40 ° F to + 200 ° F.
The use of spiral wire hose is recommended when encountered high pressure wave crests. Waves (fluctuations) pressure can cause weak spots on the wire braid hose is less strong. Hose is reinforced with spiral wire does not weaken its strength at high fluctuations.

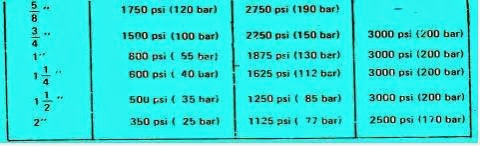

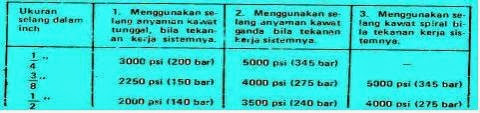

The table below will be very helpful in choosing the right hose for different usage pressure. By matching the size of hose required and then the horizontal direction reads the pressure of work in the use of the system nearby. If found in column 1, use a single wire braid hose.
If in column 2, using the double wire braid hose, or in column 3 using spiral wire hose.
Table selection pressure hose for various
